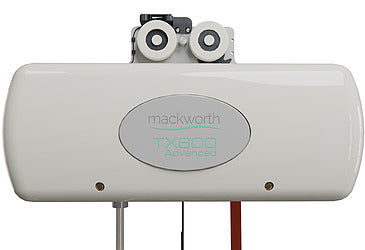

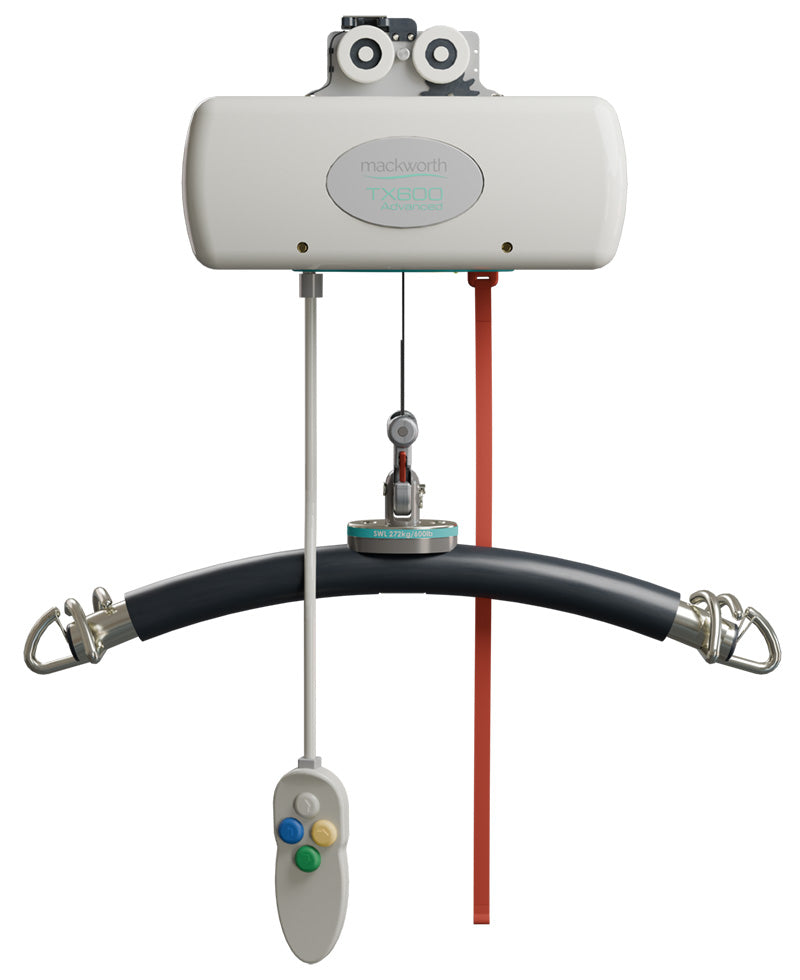

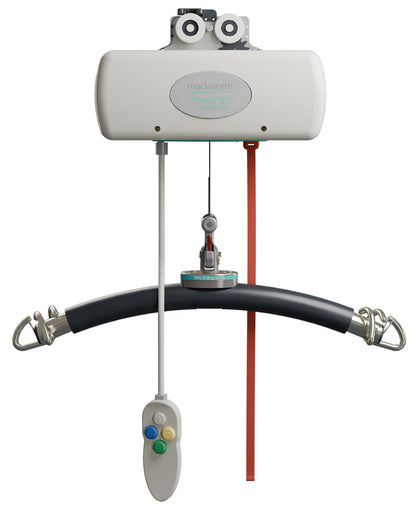

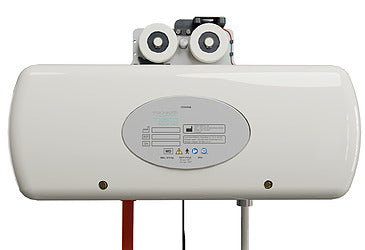

TX600 Fixed Ceiling Lift
TX600 Fixed Ceiling Lift
Couldn't load pickup availability
30 in stock
Flexible credit available
Flexible credit available
Flexible credit available
Flexible credit available
Geniune Product
Quality Checked
Secure Payment
- Specifications
- Shipping
- Video
Ships within 2–3 business days. Free shipping on orders over $500.
5-Year Warranty
This wheelchair is backed by a 5-year limited warranty, giving you long-term peace of mind. We stand behind the quality of our frame and materials, so you can feel confident in your purchase.
Buy with absolute confidence.This low-profile, fixed ceiling track lifts provide a greater lifting height than any other lift option and are safe, practical and always there when needed.
The TX600 makes it possible to move mobility impaired individuals with minimal strain or risk to the caregiver, while providing complete safety, dignity and comfort for the client
Features
- Low Profile – Low profile ceiling lift with 78.74” (2000mm) lifting range.
- Wet Rooms & Bathrooms – Ideal for use in wet rooms and bathrooms.
- Smooth High Torque Motor – Smooth running lifting tape and high torque motor, with powered traverse option available.
- Lift Capacity – Transfer patients up to 600 lbs.

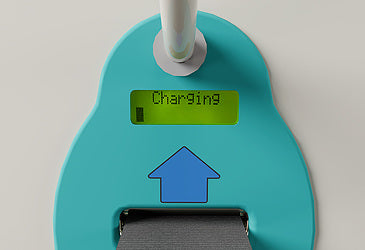

- Discreet Design – Unobtrusive design which doesn’t take up floor space or cause trip hazards, and is complete with in-track charging point.
Specifications
| Lift Motor: | 24 VDC |
| Traverse Motor (optional at time of purchase): | 24 VDC |
| Charger Input: | 100-240V AC 50/60Hz 1.5A |
| Charger Output: | 24 VDC/1.0 A |

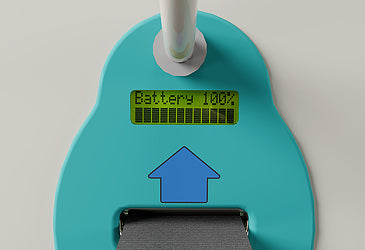

| Batteries: | 24 VDC (2x 12 VDC) 5.0 Ah (SLA) |
| Lift Case: | Flame Retardant ABS |
| Lift Case Degree of Protection: | IP21 |
| Handset Degree of Protection: | IP67 |

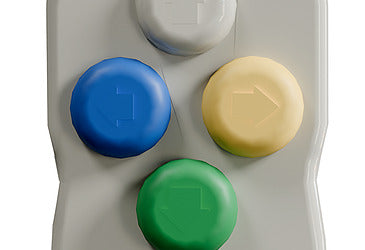

| Operation: | Handset (Pneumatic) |
| Sound Level: | 54 dB(A) |
| Traverse Speed (SWL) 1, 2, 3, 4: | 1.58 “/s (40.12 mm/s), 3.87 “/s (98.24 mm/s), 5.90 “/s (150.00 mm/s), 7.75 “/s (196.88 mm/s) |
| Traverse Speed (No Weight) 1, 2, 3, 4: | 1.79 “/s (45.48 mm/s), 4.11 “/s (104.34 mm/s), 6.23 “/s (158.32 mm/s), 7.87 “/s (200.00 mm/s) |
| Traverse Stopping Distances (SWL) 1, 2, 3, 4: | 0.24″ (6 mm), 1.22″ (31 mm), 2.28″ (58 mm), 3.31″ (84 mm) |
| Traverse Stopping Distances (No Weight) 1, 2, 3, 4: | 0.24″ (6 mm), 1.22″ (31 mm), 2.36″ (60 mm), 3.50″ (89 mm) |
| Traverse Duty Cycle: | 25% use, 75% rest (90 seconds use, 270 seconds rest) |
| Lifting Speed (SWL): | 1.16 “/s (29.52 mm/s) |
| Lifting Speed (No Weight): | 2.54 “/s (64.52 mm/s) |
| Lowering Speed (SWL): | 2.14 “/s (54.48 mm/s) |
| Lowering Speed (No Weight): | 2.39 “/s (60.75 mm/s) |
| Stopping Distances Up (SWL): | 0.39″ (10 mm) |
| Stopping Distances Up (No Weight): | 0.94″ (24 mm) |
| Stopping Distances Down (SWL): | 1.54″ (39 mm) |
| Stopping Distance Down (No Weight): | 1.30″ (33 mm) |
| Raising/Lowering Duty Cycle: | 15% use, 85% rest (90 seconds use, 510 seconds rest) |

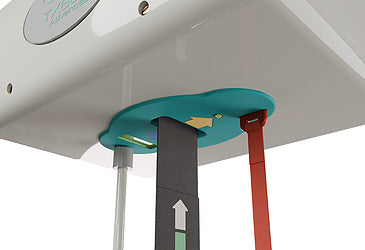

| Emergency Down Stopping Distance (SWL): | 1.54″ (39 mm) |
| Emergency Down Stopping Distance (No Weight): | 1.38″ (35 mm) |
| Battery Capacity for Raising/Lowering (SWL): | 35 Lifts (Top 500 mm of Lift Tape) |
| Battery Capacity for Raising/Lowering (200 kg / 440 lbs.): | 60 Lifts (Top 500 mm of Lift Tape) |
| Battery Capacity for Raising/Lowering (100 kg / 220 lbs.): |
